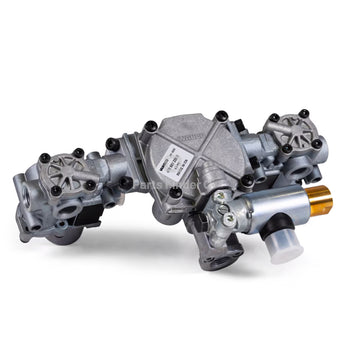

S4725002250 | Genuine Kenworth® ABS Brake Relay Valve 12V

Useful Information

Description: ABS Brake Relay Valve 12V
ABS/ATC Valve Package (Rear Axle)
Condition: New
Brand: Kenworth, Peterbilt®
Part Number: S4725002250
Cross Reference Part Number: 6300-4725002250

Type: Relay Valve

Vehicle Compatibility
Compatible with:
Freightliner
Kenworth
Mack
Meritor
Peterbilt
Volvo

Incluted Part Number:

Specifications:
Response pressure of: 38 bar
Temperature range is -40°C to +80°C
Crack Pressure: 5.5 psi
Voltage: 12V
Pallet Quantity: 60
System Configuration: 6S/6M
Volume: 9.47 L
Maximum Operating Pressure: 159.50 psi
Port thread 11/2 - 14 Dry Seal NPTF
Port thread 23/8 - 18 Dry Seal NPTF
Port thread 2.11/2 - 14 Dry Seal NPTF
Port thread 3 - Exhaust
Port thread 41/4 - 18 Dry Seal NPTF
Protection class: IP66, IP69K
Volume: 9.4656
Port Size: 12096
Crack Pressure: 4434
Width: 7584
Height: 7583
Length: 7586
Supersedes: S4725002250
Protection: IP66, IP69K
Voltage: 12V
UPC: 680502126448
Color: Grey
Width: 7.65 in.
VMRS: 013-011-000
UOM Quantity (Per Unit of Measure): 1
Unit of Measure (case, ea, drum, etc.): each
Height: 7.8 in.

Weight: 5 lb

Description and Purpose

Parts Finder Q presents the Kenworth® ABS Brake Relay Valve (Rear Axle), a top-tier 12V valve designed to regulate air pressure within the anti-lock braking (ABS) and automatic traction control (ATC) systems. Featuring a response pressure of 38 bar, a crack pressure of 5.5 psi, and a maximum operating pressure of 159.5 psi, this valve ensures consistent and efficient performance even in tough conditions. With IP66 and IP69K protection ratings, it offers excellent resistance to dust, water, and extreme temperatures (-40°C to +80°C). Compatible with Freightliner, Kenworth, Mack, Meritor, Peterbilt, and Volvo vehicles, this valve is a reliable choice for heavy-duty braking and traction control systems.

Impact on Vehicle Performance

The Kenworth® ABS Brake Relay Valve improves vehicle performance by accurately controlling air pressure in the ABS and ATC systems. This promotes efficient braking, minimizes skidding, and enhances stability, particularly in low-traction situations. Its robust design and high protection ratings guarantee reliable operation in harsh conditions, making it essential for maintaining control in challenging environments.

Why Replacement is Important

Replacing the Kenworth® ABS Brake Relay Valve is essential for ensuring the safety and dependability of the braking and traction control systems. A damaged or worn valve can result in inconsistent air pressure, leading to reduced braking efficiency, a higher risk of skidding, and potential harm to other brake parts. Prompt replacement guarantees the optimal operation of the ABS and ATC systems, improving vehicle stability, lowering maintenance expenses, and enhancing safety in demanding driving conditions.

Manufacturer Information:

Potentially Compatible Parts:

1.  WAB S472 195 078 0 | Genuine Wabco - Meritor® ABS Modulator Valve

2.  S472-170-797-0 | Genuine Wabco - Meritor® Air Brake Valve (ATC Valve)

3.  R955354 | Genuine Wabco - Meritor® ABS Modulator Valve

4.  S9730119212 | Genuine Wabco® Relay Valve tractor ABS Valve

Please note: these items are not included in the purchased package.
