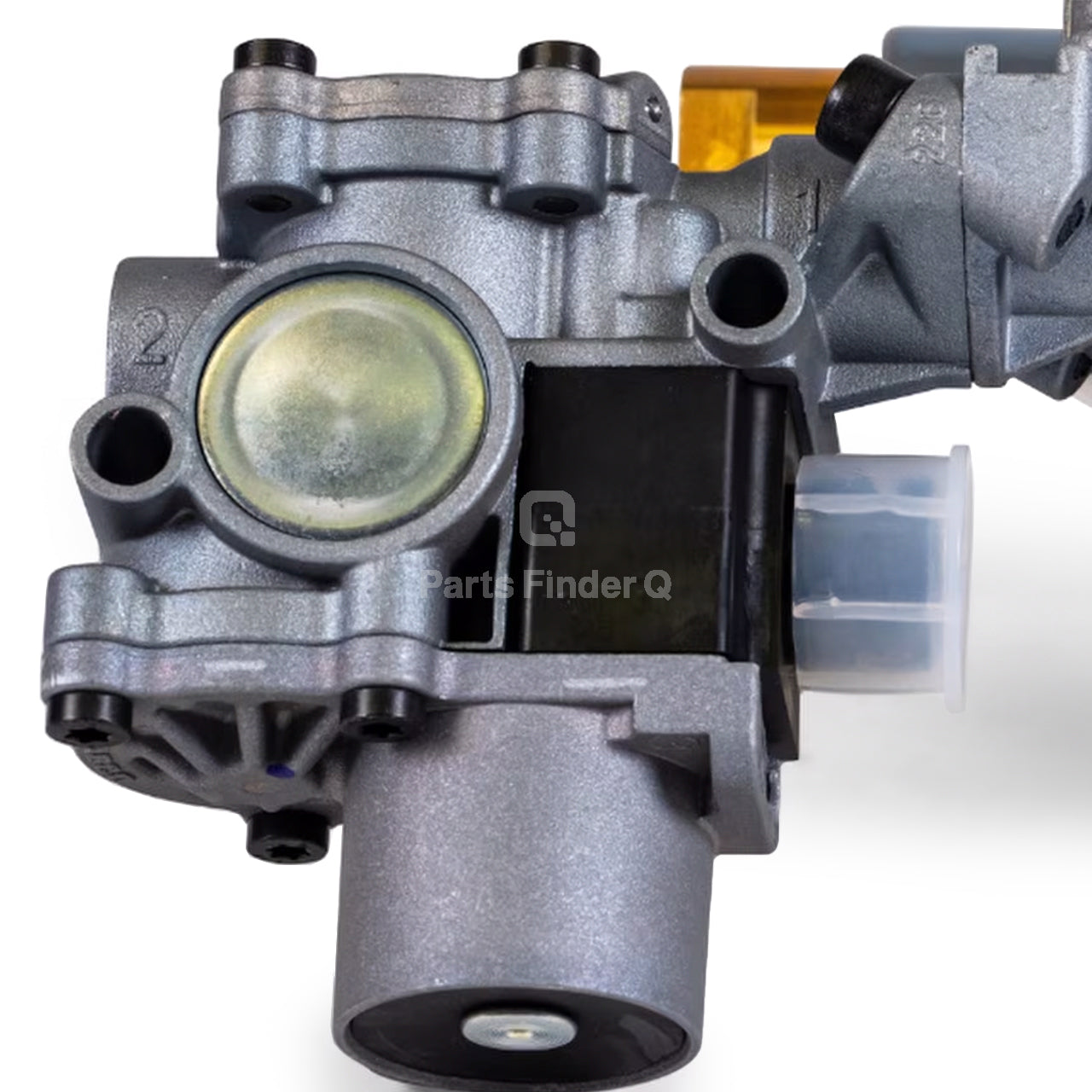

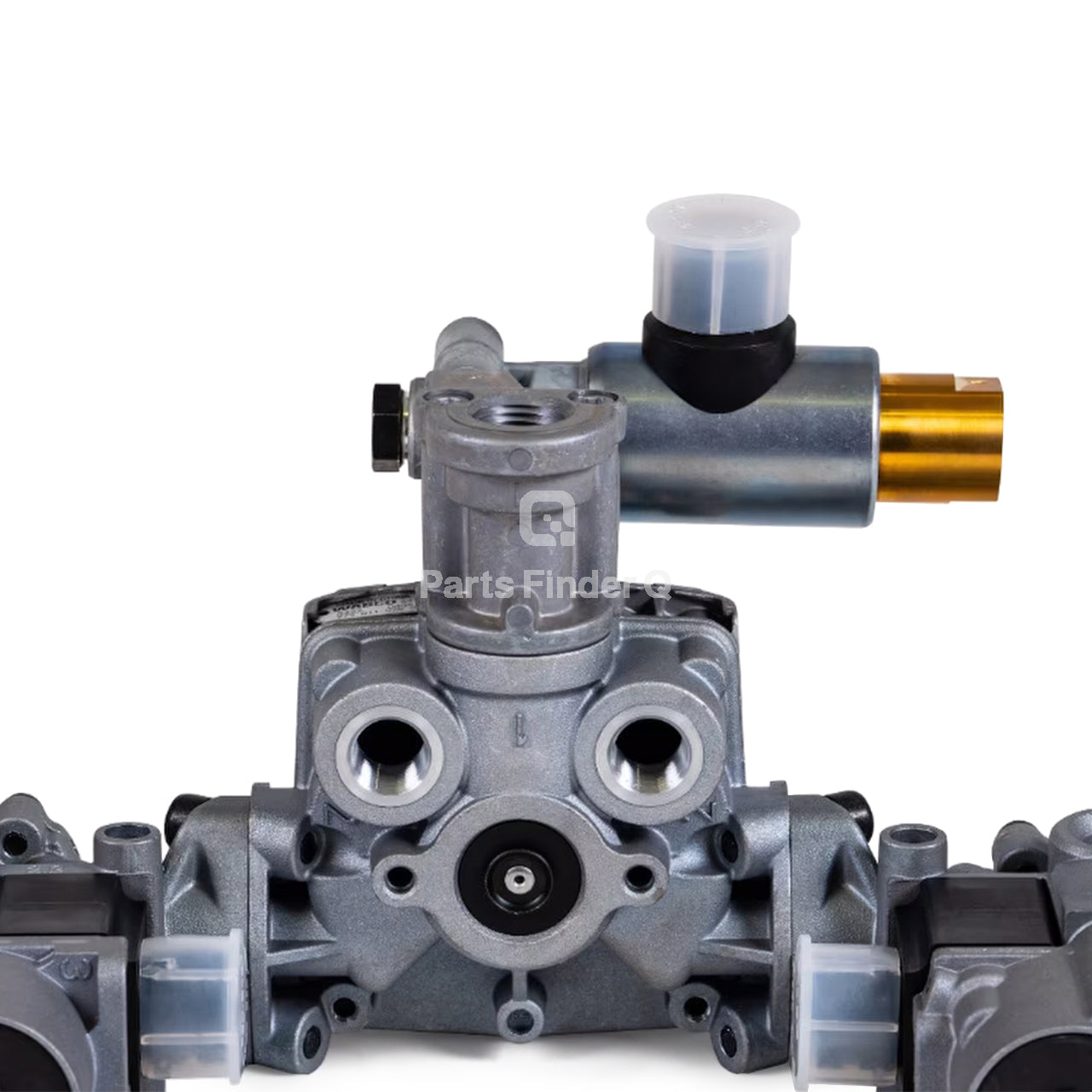

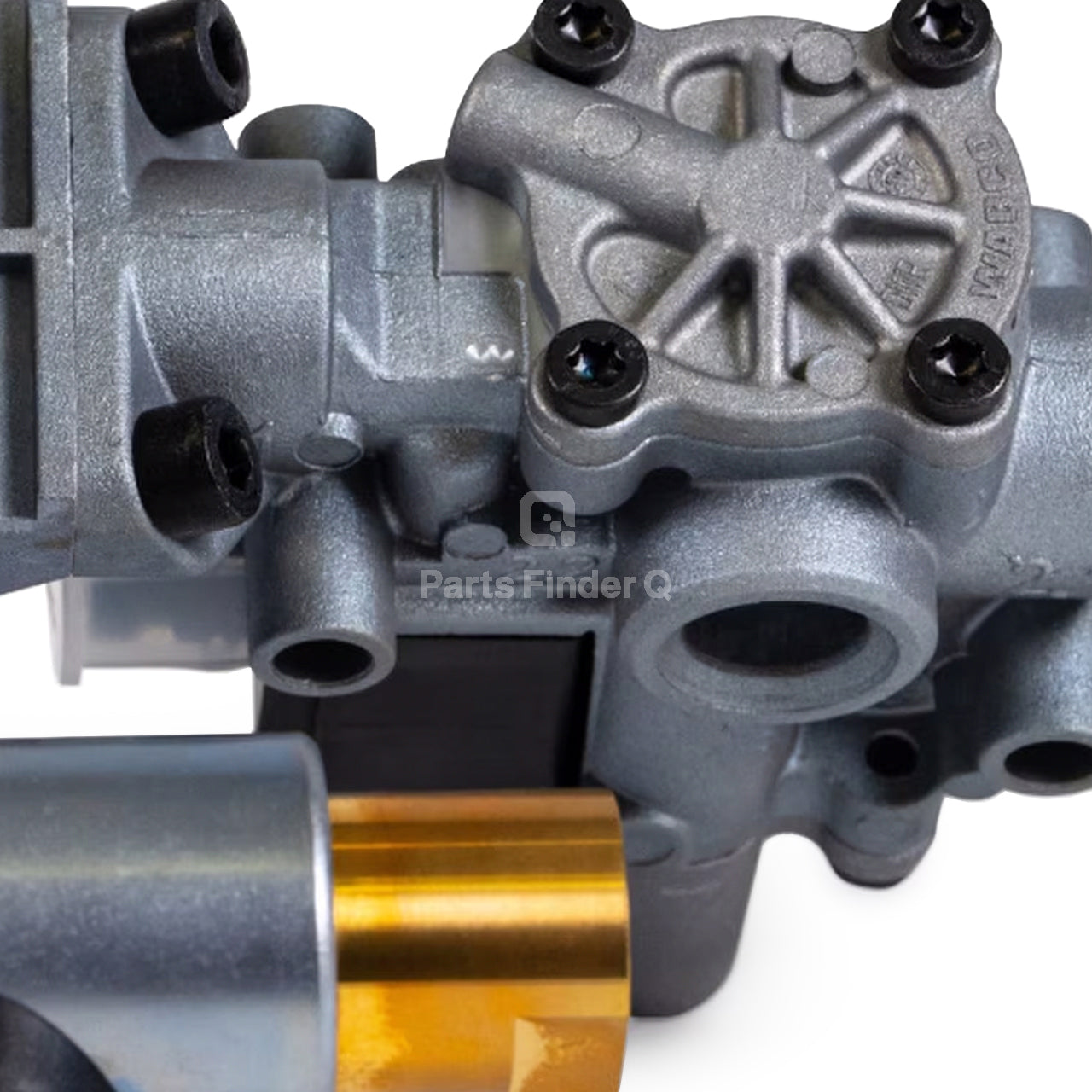

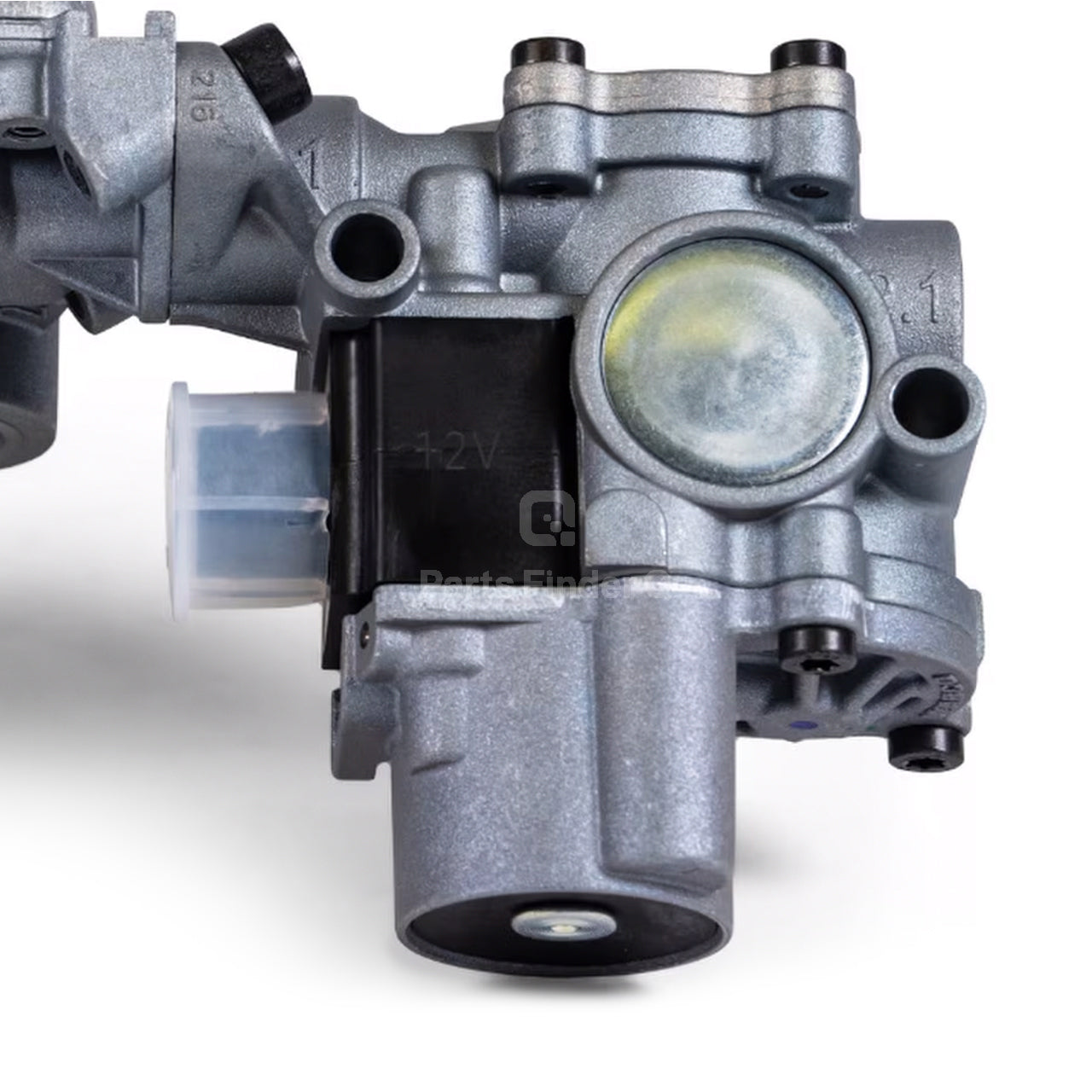

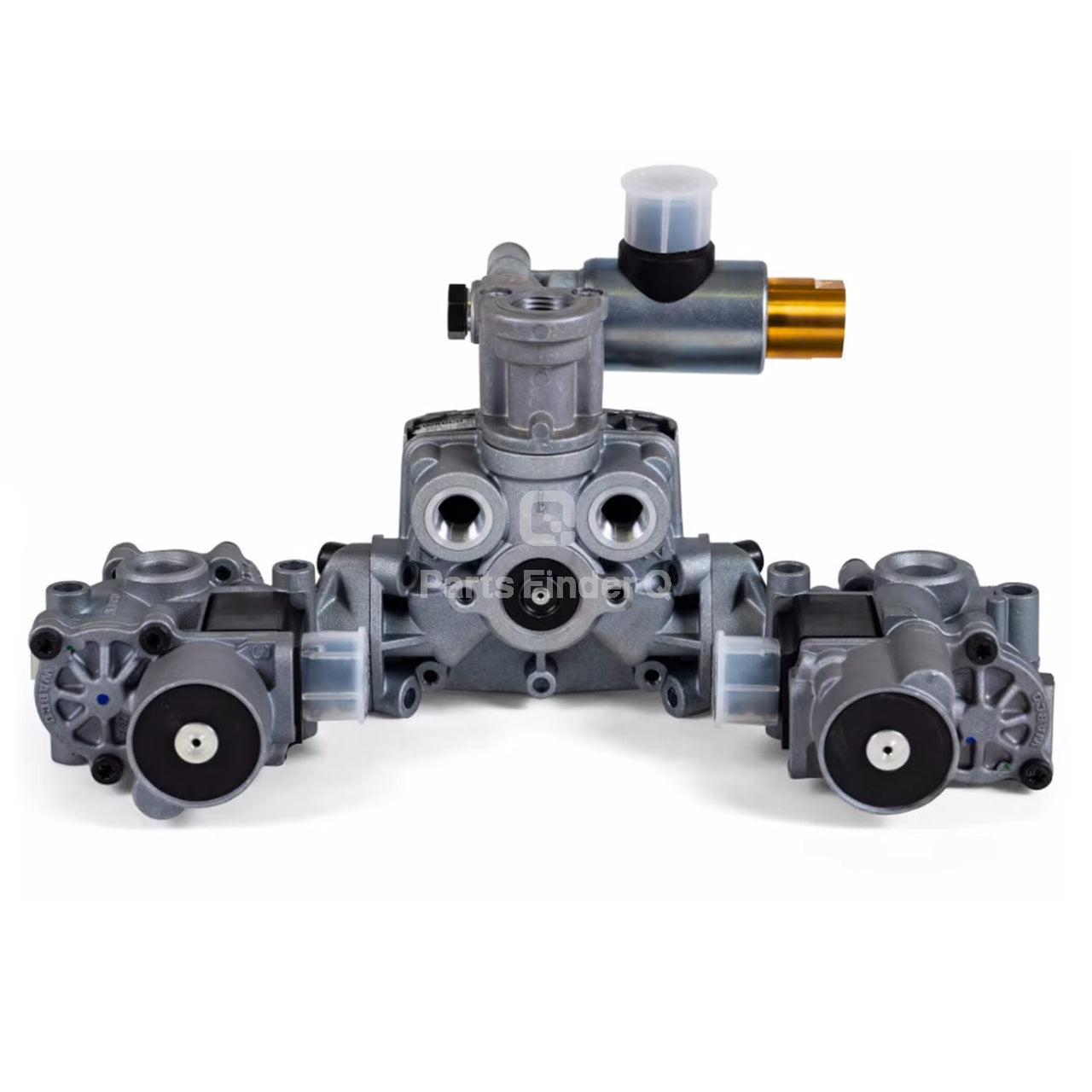

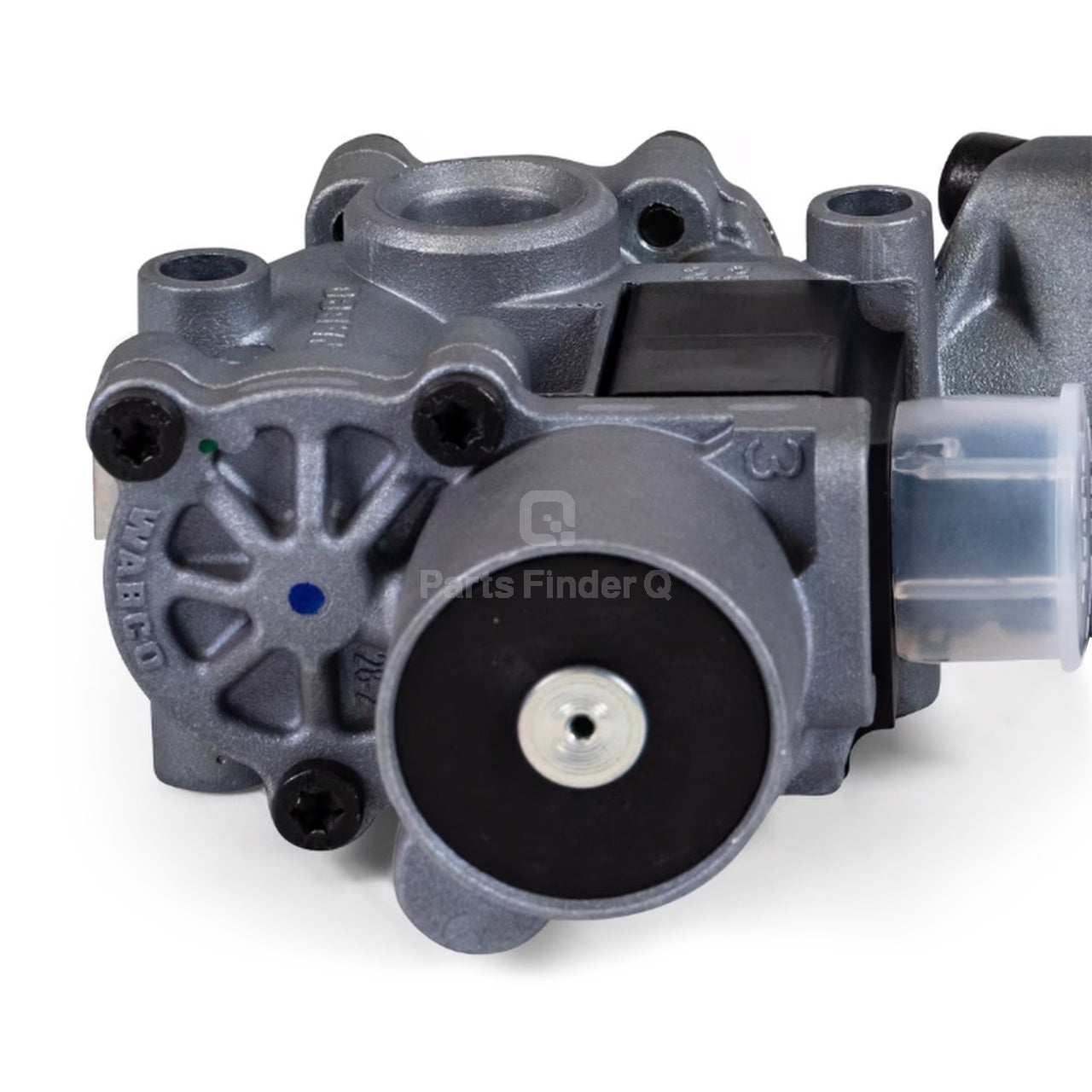

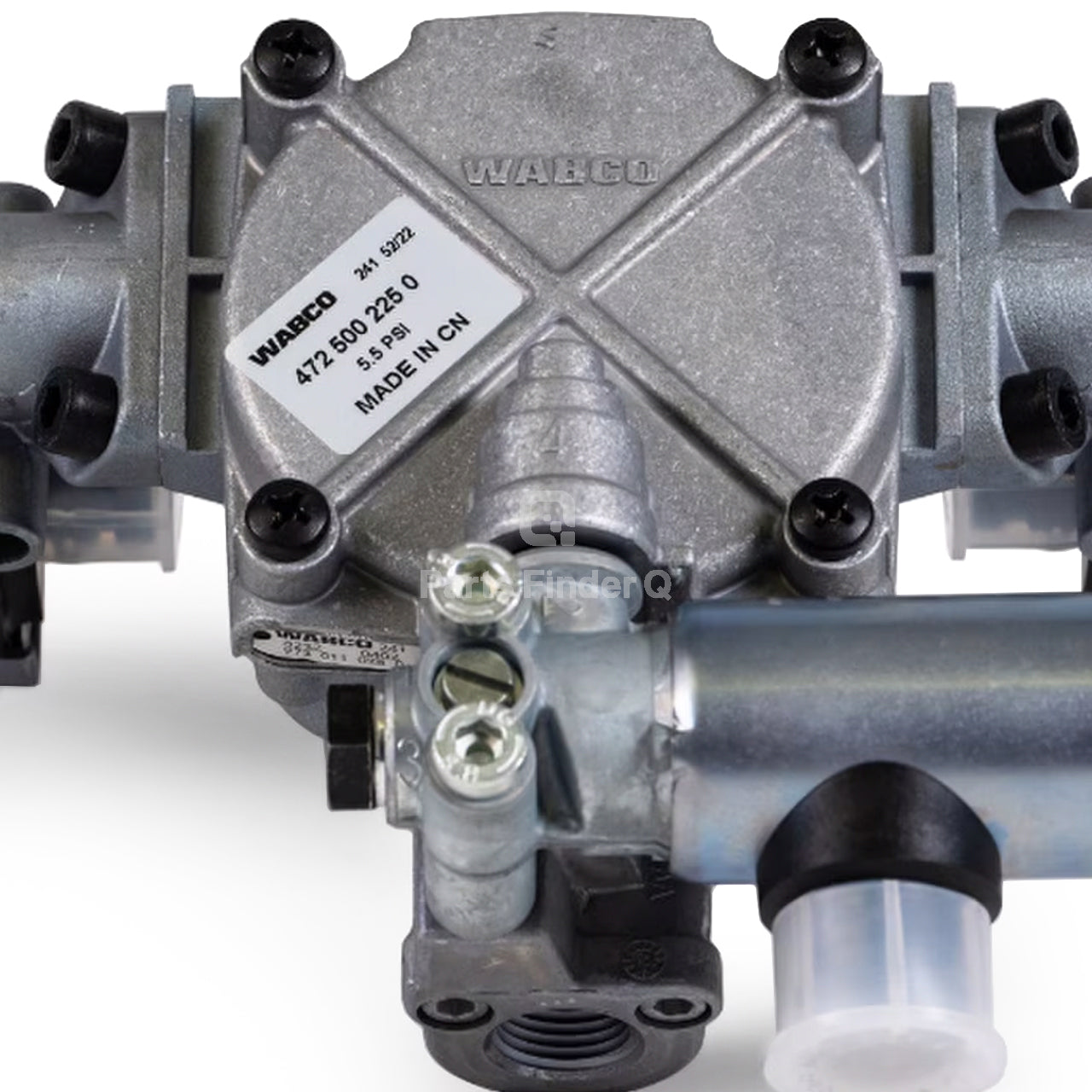

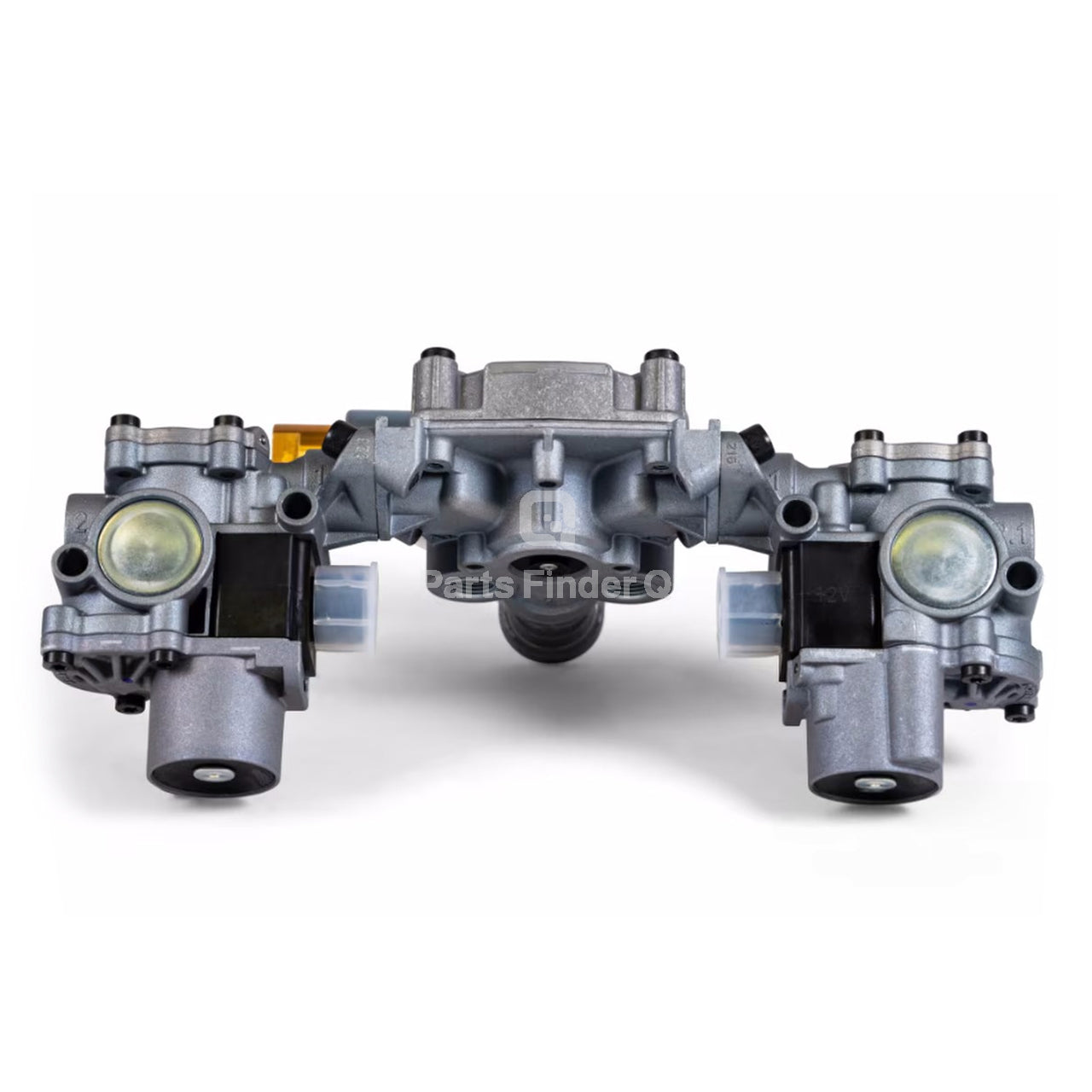

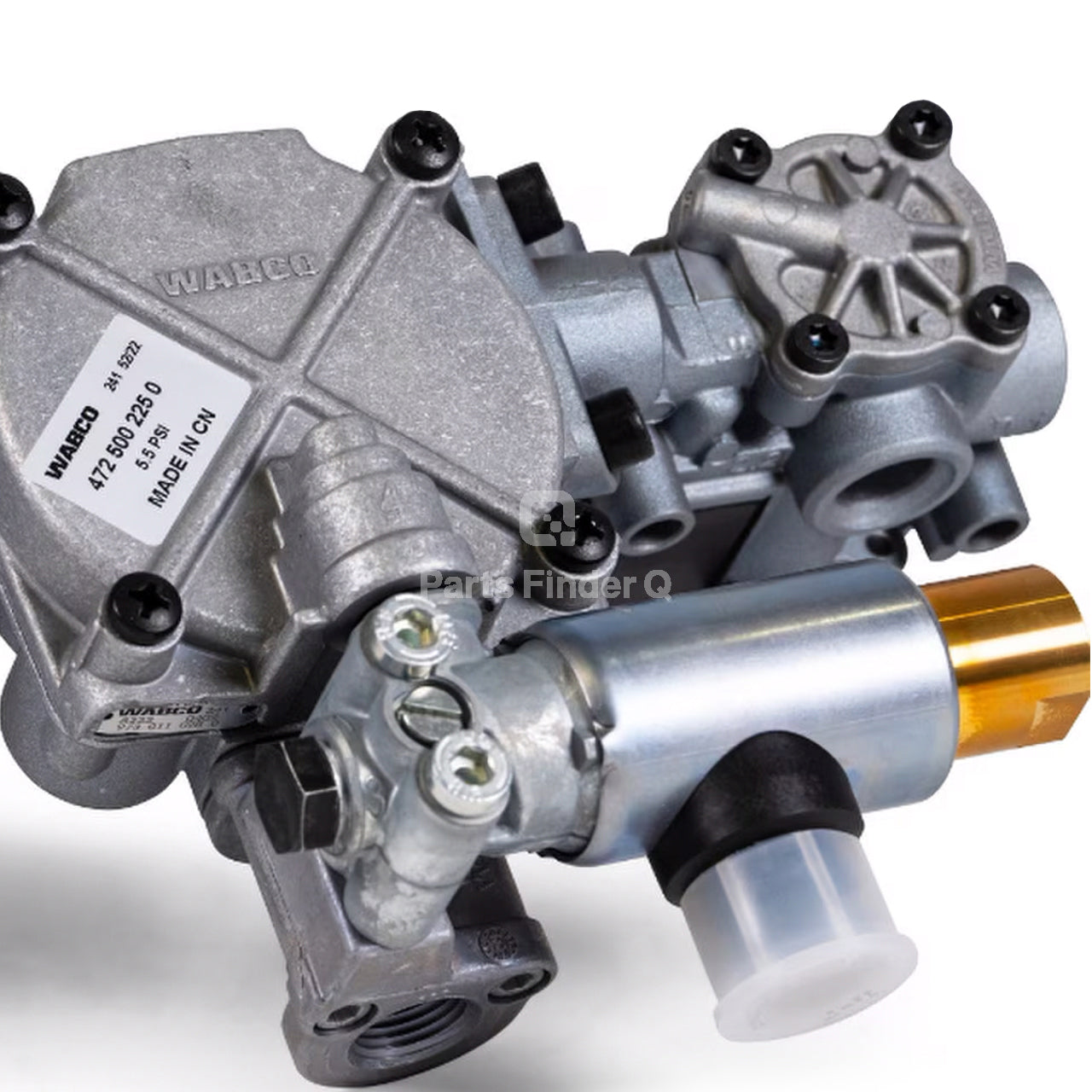

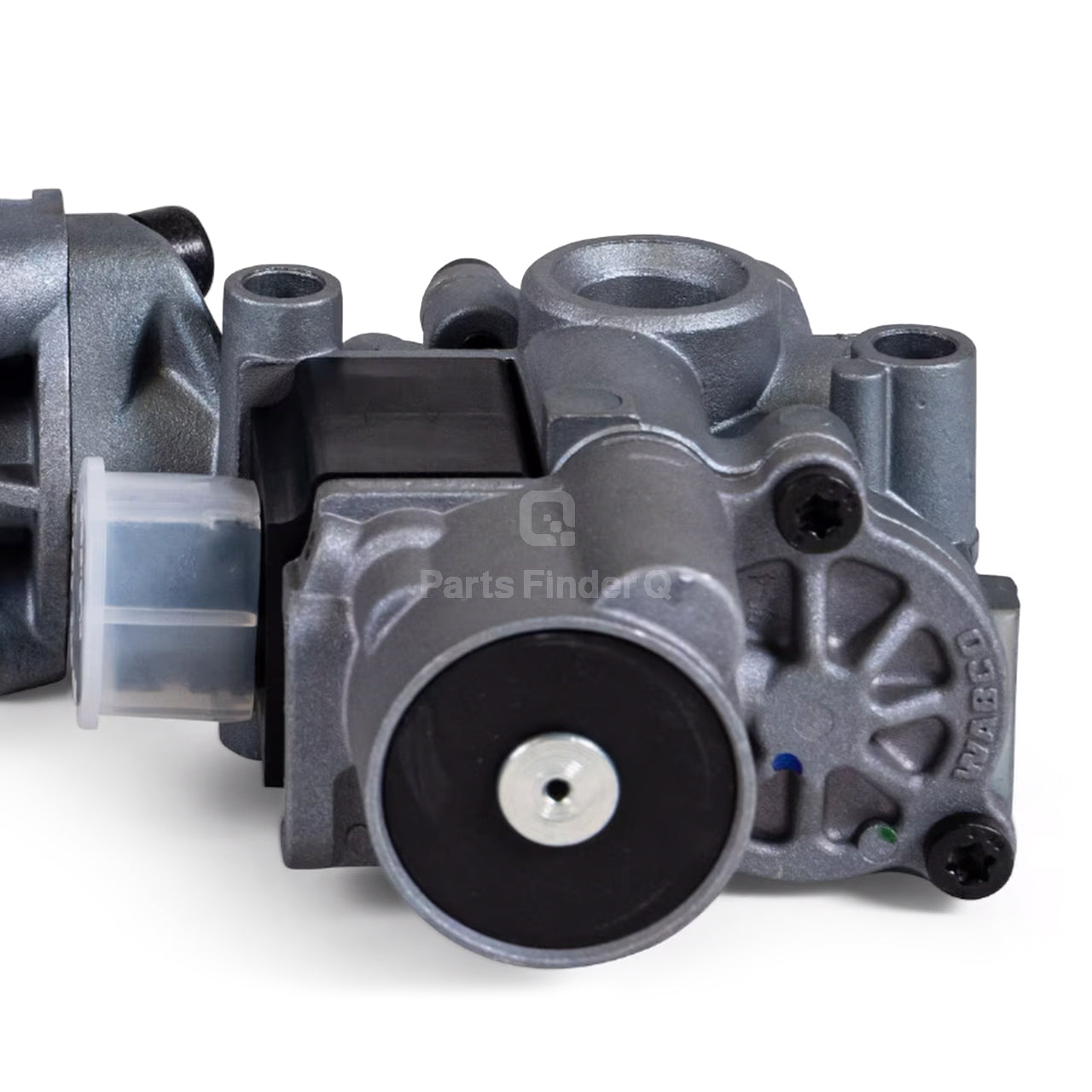

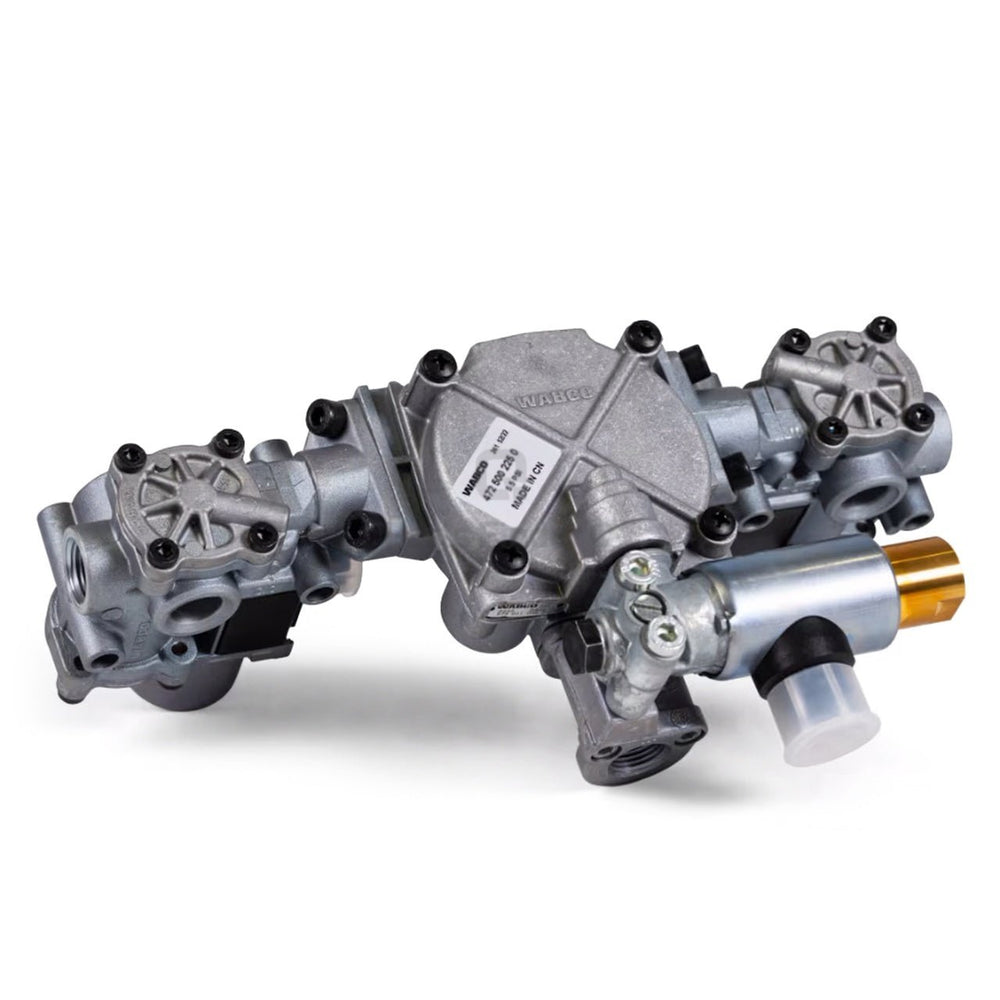

4725002250 | Genuine Wabco® ABS Brake Relay Valve 12V

Useful Information

Description: ABS Air Brake Relay Valve Kit
Rear Axle, 12V, 7.50 psi, 4S/4M + (1M) 6S/4M, with ATC
Bayonet-Style Connector
Condition: New
Brand: Wabco - Meritor®
Part Number: 4725002250
Cross Reference Part Number: 4725002250, 472 500 225 0, S472 500 225 0, S4725002250

Type: Relay Valve

Vehicle Compatibility
Compatible with:
Freightliner
Kenworth
Mack
Meritor
Peterbilt
Volvo

Specifications:
Response pressure of: 38 bar
Temperature range is -40°C to +80°C
Crack Pressure: 5.5 psi
Voltage: 12V
Pallet Quantity: 60
System Configuration: 6S/6M
Volume: 9.47 L
Maximum Operating Pressure: 159.50 psi
Port thread 11/2 - 14 Dry Seal NPTF
Port thread 23/8 - 18 Dry Seal NPTF
Port thread 2.11/2 - 14 Dry Seal NPTF
Port thread 3 - Exhaust
Port thread 41/4 - 18 Dry Seal NPTF
Protection class: IP66, IP69K
Volume: 9.4656
Operating Temperature Range -40 to + 185° F
Port Size: 12096
Crack Pressure: 4434
Width: 7584
Height: 7583
Length: 7586
Supersedes: S4725002250
Protection: IP66, IP69K
Voltage: 12V
UPC: 680502126448
Color: Grey
Width: 7.65 in.
VMRS: 013-011-000
UOM Quantity (Per Unit of Measure): 1
Unit of Measure (case, ea, drum, etc.): each
Height: 7.8 in.

Weight: 5 lb

Description and Purpose

Parts Finder Q offers the Wabco - Meritor® ABS Brake Relay Valve, a 12V relay valve engineered to regulate air pressure within a vehicle's anti-lock braking system (ABS). Featuring a response pressure of 38 bar and a crack pressure of 5.5 psi, this valve is designed for optimal performance under demanding conditions. It supports a maximum operating pressure of 159.50 psi and operates effectively across a temperature range of -40°C to +80°C (-40°F to +185°F).  This relay valve is compatible with Freightliner, Kenworth, Mack, Meritor, Peterbilt, and Volvo vehicles, making it a versatile solution for commercial and heavy-duty applications. With its IP66 and IP69K protection ratings, the valve is resistant to dust, water, and extreme environments, ensuring long-lasting reliability.

Impact on Vehicle Performance

The ABS Brake Relay Valve ensures precise air pressure regulation, enhancing braking efficiency, stability, and safety. By preventing wheel lock-up during braking, it improves vehicle control and reduces stopping distances, especially in emergency or low-traction conditions. A functional relay valve is critical for maintaining optimal ABS performance and overall vehicle safety.

Why Replacement is Important

Replacing a worn or failing ABS brake relay valve is essential to maintaining proper air pressure, enhancing braking performance, and ensuring vehicle safety. This component is a vital part of the brake system, contributing to improved vehicle control and stability during braking operations.

Manufacturer Information:

Potentially Compatible Parts:

1.  WAB S472 195 078 0 | Genuine Wabco - Meritor® ABS Modulator Valve

2.  S472-170-797-0 | Genuine Wabco - Meritor® Air Brake Valve (ATC Valve)

3.  R955354 | Genuine Wabco - Meritor® ABS Modulator Valve

4.  S9730119212 | Genuine Wabco® Relay Valve tractor ABS Valve

Please note: these items are not included in the purchased package.
