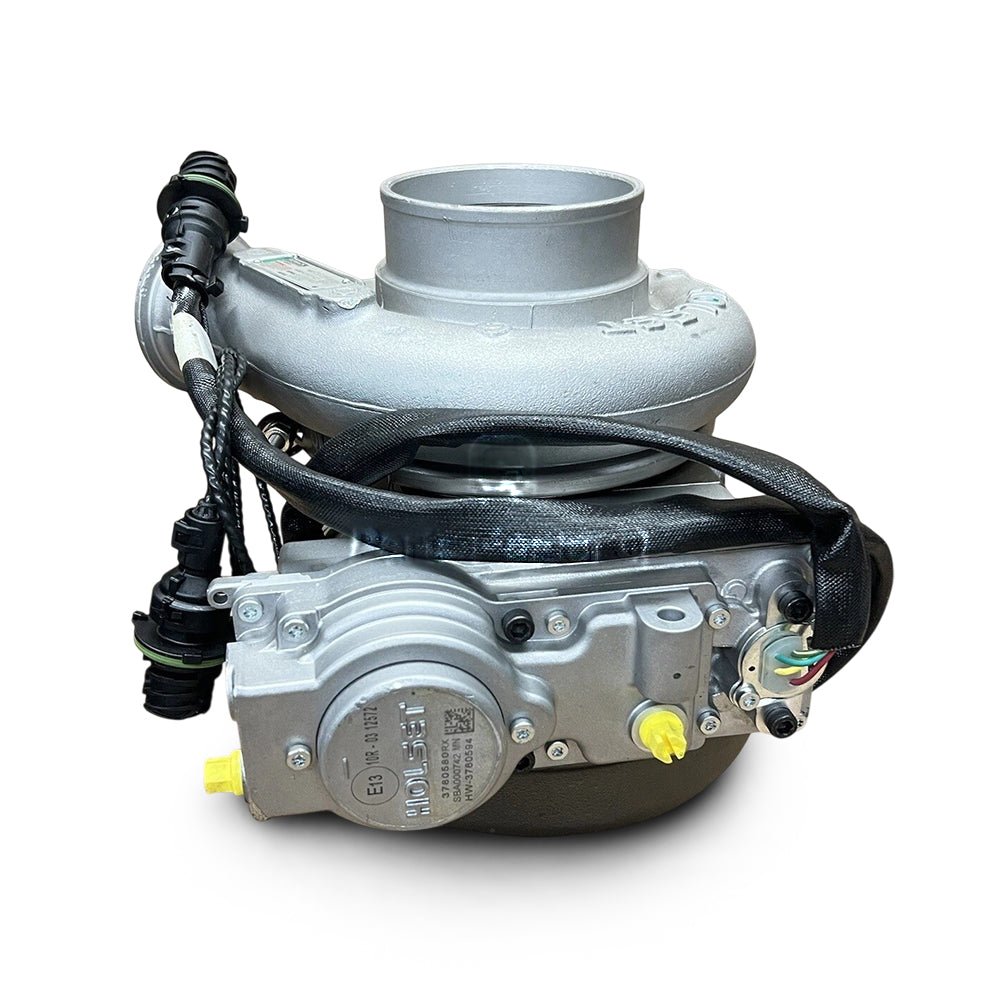

3792247 | Genuine Cummins® HE451VE VGT Short Turbocharger Kit

SKU: 3792247 MPN: 3792247

Deliver accurate response calibration with Genuine Cummins VGT Short Turbocharger Kit with Part Number: 3792247 in New condition. HE400VG / HE451VE model includes actuator for accurate variable geometry adjustment.

$3,749.00
No Core Charge
2 in stock

Need it fast? We offer overnight shipping

Contact us to check if overnight next-day delivery is available for your order - PN: 3792247

  • Free shipping over $199 Order today — get it
  • Clock Icon
    Orders before 7 PM EST ship same business day
  • Location icon, warehouse pickup point.
    Pickup available. Usually ready in 24 hours

Product Description

Product Name VGT Short Turbocharger Kit Product Name VGT Short Turbocharger Kit
Condition New Condition New
Brand Cummins Brand Cummins
Model HE400VG / HE451VE Model HE400VG / HE451VE
Part Number 3792247 Part Number 3792247
Cross Reference 3792247NX, 3792247RX Cross Reference 3792247NX, 3792247RX
Interchange Part Numbers 3797542, 3797542H, 3797542HX Interchange Part Numbers 3797542, 3797542H, 3797542HX
Engine Compatible
Cummins ISM11 / QSM Cummins ISM11 / QSM
Specifications
Displacement 320V Displacement 320V
Angle α (compressor housing) : 257º Angle α (compressor housing) : 257º
Angle β (turbine housing) 158º Angle β (turbine housing) 158º
Turbine Wheel Ind. 66.35 mm, Exd. 71.28 mm, 11 Blades Turbine Wheel Ind. 66.35 mm, Exd. 71.28 mm, 11 Blades
Compressor Wheel Ind. 61.95 mm, Exd. 92.96 mm, 7+7 Blades, Superback Compressor Wheel Ind. 61.95 mm, Exd. 92.96 mm, 7+7 Blades, Superback

Useful Information

Description and Purpose:

This Genuine VGT Short Turbocharger Kit from Cummins built for ISM11 and QSM engines. Part number: 3792247 in New condition integrates advanced variable geometry technology using HE400VG / HE451VE model. This unit dynamically adjusts exhaust flow to optimize boost levels across RPM ranges. Its integrated electronic actuator provides precise vane control, supporting clean combustion and stable torque delivery in commercial diesel trucks. Cross reference: 3792247NX, 3792247RX.

Why Replacement is Important:

Wear in the turbine assembly or failure of the actuator can disrupt turbo efficiency, triggering power loss and potential engine derate.

Impact on Vehicle Performance:

Healthy turbocharger restores low-end torque, reduces emissions, and ensures optimal engine breathing. It maintains engine responsiveness under heavy loads.

Manufacturer Information:

Cummins® sets the standard for diesel performance with engines designed for power, endurance, and environmental responsibility.

Tags & Category: Engine parts, Turbocharger, VGT, ISM11, Genuine Cummins, VGT Short Turbocharger, HE400VG, HE451VE, Turbocharger Cummins, Turbo Components, Variable Geometry Turbo, Heavy Duty Truck Parts, Diesel Engine Turbocharger Actuator Kit.

Warranty:

Parts Finder Q offers a 365-days warranty for all types of parts in any condition. The warranty applies exclusively to purchases made directly through our website (partsfinderq.com). Please note that purchases made through third-party platforms like eBay or Amazon are not covered by this warranty.
